Rubber Rebound Resilience Tester
- group name
- Rubber and Plastic Tester
- Min Order
- 1 piece
- brand name
- HUDA Test Machine Manufacturer
- model
- HUD-R810
- Nearest port for product export
- ShenZhen, HK
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, Cash
- update time
- Wed, 30 Jun 2021 14:09:55 GMT
Paramtents
Name Rubber Rebound Resilience Tester
Indentor diameter Φ12.45 mm ~ 15.05 mm
Sample thickness 12.5±0.5 mm
Impacting mass 0.34 kg ~ 0.35kg
Impact velocity 1.4 m/s to 2.0 m/s
Dimensions L*W*H:320×200×360mm
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed
Application

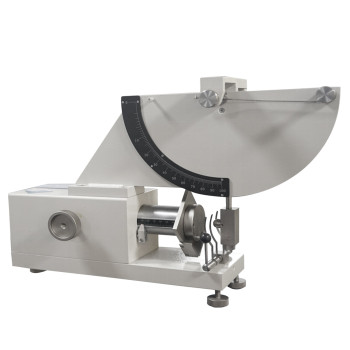

The rubber rebound resilience tester shall be measured by means of an apparatus consisting of a pendulum-like one degree of freedom mechanical oscillatory device and heavy and secure test piece holder.
Test standard
ISO 4662: Rubber, vulcanized or thermoplastic-Determination of rebound resilience - pendulum method
Specification
Indentor diameter | Φ12.45 mm ~ 15.05 mm |
Sample thickness | 12.5±0.5 mm |
Impacting mass | 0.34 kg ~ 0.35kg |
Impact velocity | 1.4 m/s to 2.0 m/s |
Apparent strain energy density | 324 kJ/m3 ~ 463 kJ/m3 |
Indication error | ± 0.5% |
Dimensions | L*W*H:320×200×360mm |
Machine weight | 20 kg |
