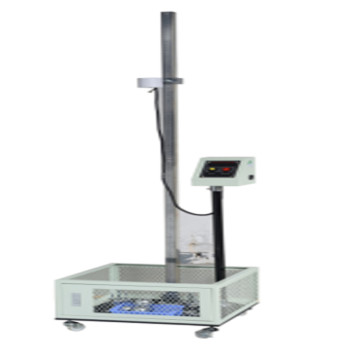

Falling Ball Impact Tester

group name: Rubber and Plastic Tester

Min Order: 1 piece

brand name: HUDA Test Machine Manufacturer

model: HUD-R601

Nearest port for product export: ShenZhen, HK

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, Cash

update time: Thu, 08 Jul 2021 16:24:59 GMT

contact supplier

Paramtents

Name Falling Ball Impact Tester
Impact height range 0-2000mm
Drop height accuracy 1mm
Drop rod shape square rod
Sample size 280×100×40mm
Weight tolerance ±5g

Packging & Delivery

Min Order1 piece

Briefing

This machine is designed to check the collision of finished products or components

Detailed

Application

This machine is designed to check the collision of finished products or components such as plastics during the installation process, so as to evaluate whether the product structure is defective. The steel ball with a certain weight can freely fall at a certain height and hit the sample, components, to observe the degree of product damage.

Specification

Drop height	0~2000mm
Drop height accuracy	1mm
Control mode	Electrical solenoid control, lifting height adjusted manually
Test sample size	≤280x100x40mm
Weights	112g、198g、225g、357g、533g、1041g、2280g
Protection cabinet	Cabinet to avoid test sample and weights fall out
External Dimension	WDH: 500mm×500mm×2100mm
Package Dimension	WDH: 221mm×610mm×630mm
Power	Single phase, 220V, 50Hz
