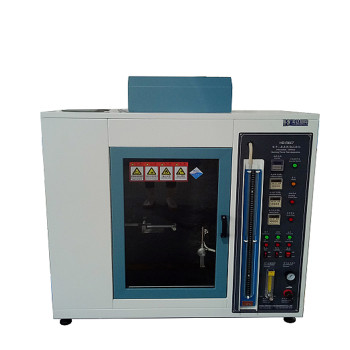

UL 94 Flammability Tester APPLICATION
- group name
- Rubber and Plastic Tester
- Min Order
- 1 piece
- brand name
- HUDA Test Machine Manufacturer
- model
- HUD-R807
- Nearest port for product export
- ShenZhen, HK
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, Cash
- update time
- Wed, 30 Jun 2021 13:54:00 GMT
Paramtents
Name Flammability Tester APPLICATION
Inner chamber size ≥0.53, with glass window observation door
Angle 20 °, 45 °, 90 ° (adjustable)
Flame height can be adjusted from 20mm to 175mm
Power 1 phase, AC 220V / 50Hz
Flame time 0～99min99s, can be set
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed
APPLICATION
This tester is suitable for the inspection and evaluation of the burning characteristics of plastic materials. It is equipped with a gas flow meter to adjust the size of the flame, using motor drive, simple and safe operation.
TEST STANDARD
UL94、IEC60695
STANDARD FEATURES
Inner chamber size | ≥0.53, with glass window observation door |
Flame time | 0～99min99s, can be set |
After flame time | 0～99min99s, can be set |
Residual time | 0～99min99s, can be set |
Angle | 20 °, 45 °, 90 ° (adjustable) |
Four counter | preset spark timing, flame retardant timing, burnout timing, residual timing |
Burner size | The inner diameter of the nozzle is Ø9.5mm, and the effective length of the nozzle is 100mm. With air conditioning hole |
Flame height | can be adjusted from 20mm to 175mm |
Power | 1 phase, AC 220V / 50Hz |
