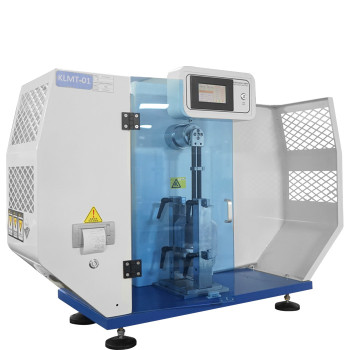

Izod And Charpy Impact Tester Charpy Izod Plastic Impact Strength Test Machine

Izod And Charpy Impact Tester Charpy Izod Plastic Impact Strength Test Machine
Izod And Charpy Impact Tester Charpy Izod Plastic Impact Strength Test MachineIzod And Charpy Impact Tester Charpy Izod Plastic Impact Strength Test MachineIzod And Charpy Impact Tester Charpy Izod Plastic Impact Strength Test Machine
group name
Rubber and Plastic Tester
Min Order
1 piece
brand name
HUDA Test Machine Manufacturer
model
HUD-R802-1
Nearest port for product export
ShenZhen, HK
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
Acceptable payment methods
T/T, L/C, D/P D/A, Cash
update time
Tue, 28 Dec 2021 17:56:44 GMT

Paramtents

  • Name PLASTIC CHARY & IZOD IMPACT TESTER

  • Pre-elevation angle 150°

  • Impact velocity 3.5m/s

  • Pendulum center distance 335mm

  • Blade filleted radius R=0.8±0.2mm

  • Impact blade to upper surface distance of the jaw 22mm±0.05mm

Packging & Delivery

  • Min Order1 piece

Briefing

It does not need to disassemble the fixture and sample holder. Two test methods are automatically switched.

Detailed

Application

This instrument is a new type of multi-functional Charpy and Izod integrated impact testing machine. It does not need to disassemble the fixture and sample holder. Two test methods are automatically switched. It is easy to use, simple to operate and high in test accuracy. It is mainly used for the determination of the impact toughness of non-metallic materials such as rigid thermoplastic molding and extrusion materials, hard thermosetting molding materials and fiber-reinforced thermosetting and thermoplastic composites

Test standards

ISO 180: Plastics -- Determination of Izod impact strength

ISO 179: Plastics -- Determination of Charpy impact

ASTM D256: Determining the Izod Pendulum Impact Resistance of Plastics

Specification









Izod Impact Test

Capacity

2.75J,5.5J

Pre-elevation angle

150°

Impact velocity

3.5m/s

Pendulum center distance

335mm

Blade filleted radius

R=0.8±0.2mm

Impact blade to upper surface distance of the jaw

22mm±0.05mm

Center sample block

One piece









Charpy Impact Test

Pre-elevation angle

150°

Capacity

1J2J,4J,5J

Impact velocity

2.9m/s

Pendulum center distance

230mm

Support distance

40mm60m70mm95mm

Blade filleted radius

R=2mm±0.5mm

Impact blade angle

30°±1°

Center sample block

One piece

Power

AC220V±10%   50/60HZ
